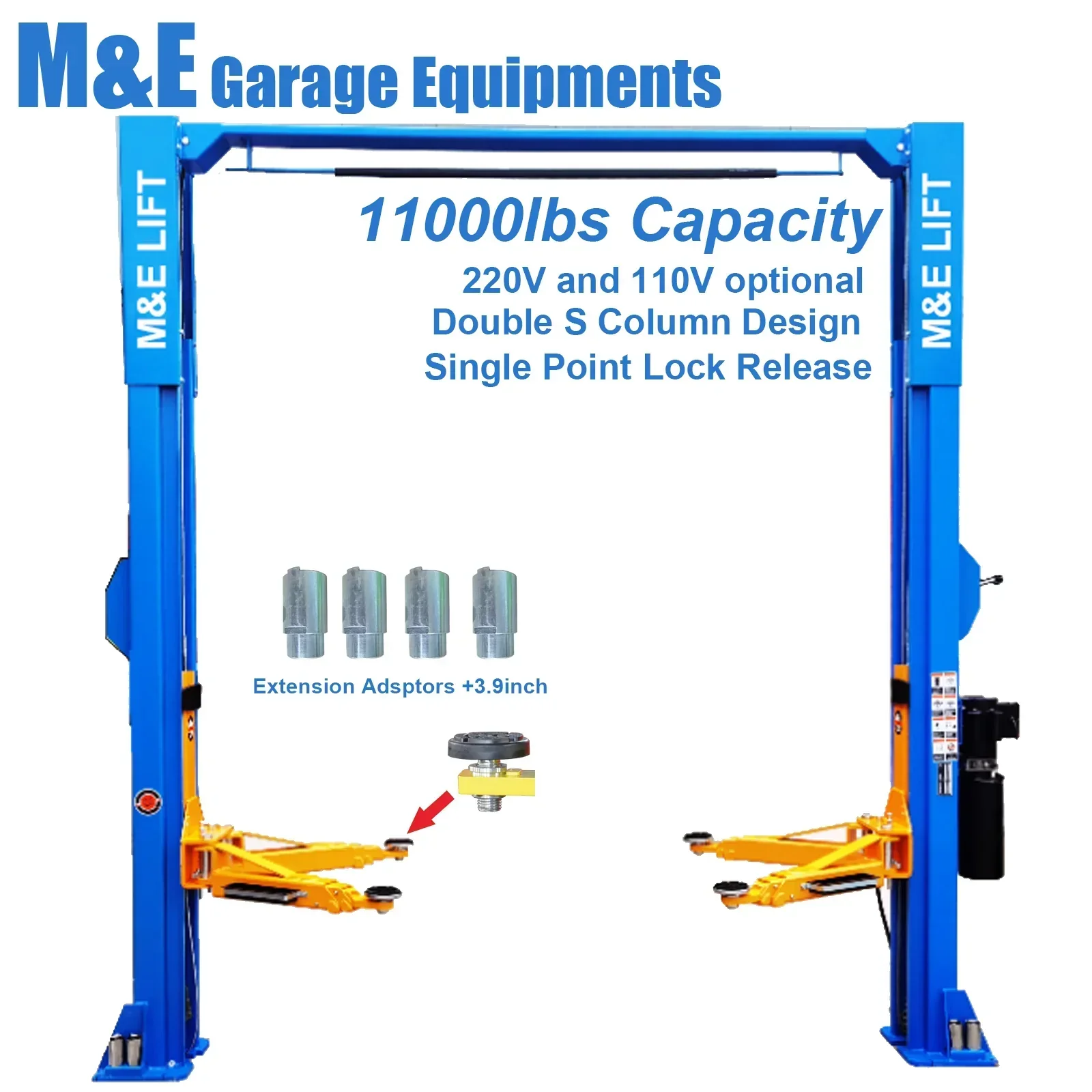

Katool ME-LM1100 Single Lock Release Two Post Vehicle Lift 11,000lbs
$1,299.00
$2,599.00
5.00
Quantity
In Stock
Free shipping
Order Before
to ensure its availability.

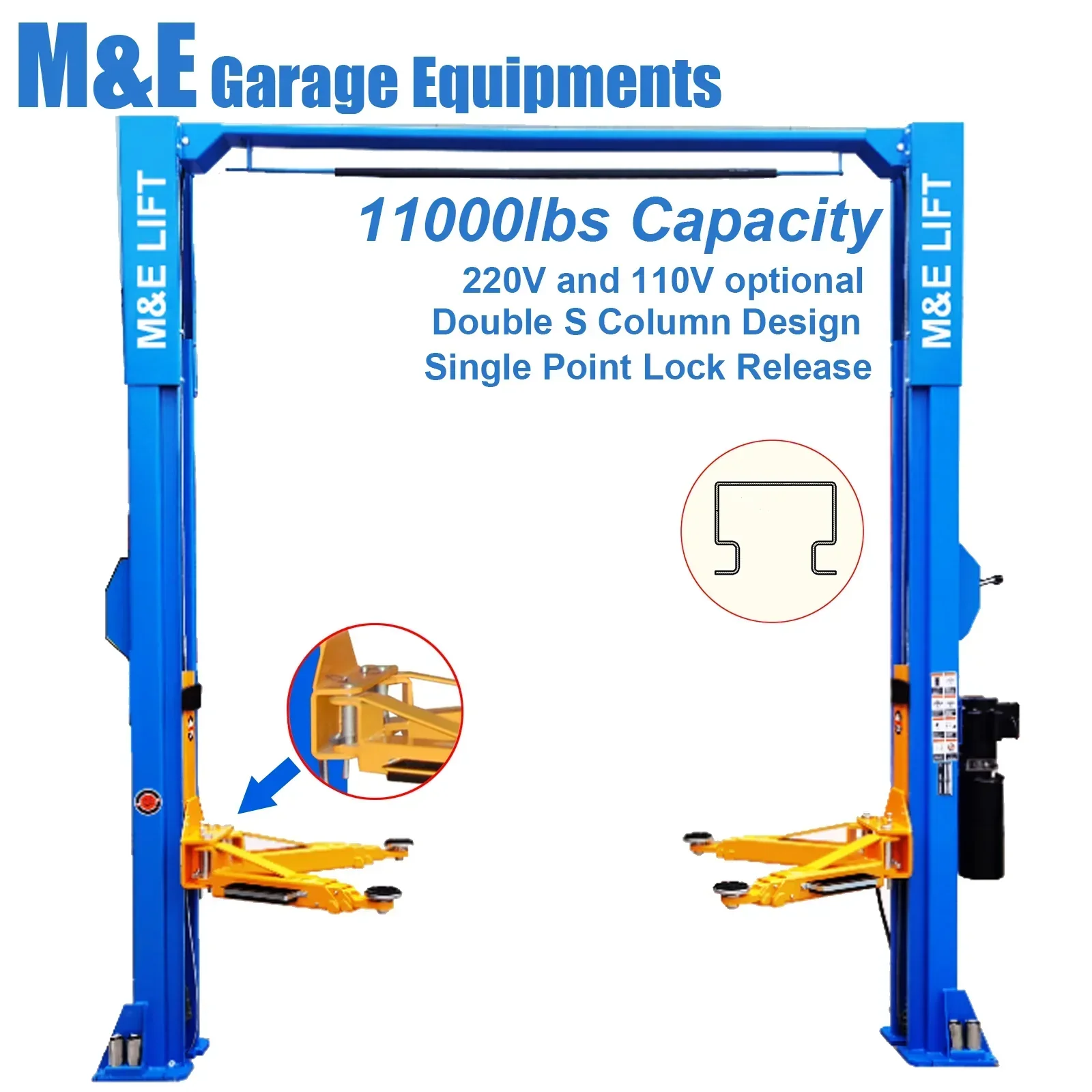

The Katool ME-LM1100 is a professional-grade 11,000 lb two-post lift built for serious automotive work. Featuring CE-certified safety, single-point lock release, and a symmetric clear-floor design, this lift delivers powerful performance for professional shops and dedicated home garages. The 94.5" drive-through clearance provides excellent undercarriage access for service and repairs.
Official Specifications (Katool ME-LM1100)
Lifting Capacity: 11,000 lbs (5,000 kg)
Max Lifting Height: 70.75" (1,800mm)
Min Lowered Height: 4.25" (110mm)
Overall Height: 141.25" (3,587mm)
Overall Width: 142.25" (3,614mm)
Outside Column Width: 128" (3,250mm)
Inside Column Width: 110.25" (2,800mm)
Drive-Through Clearance: 94.5" (2,400mm)
Power Requirements: 220V (hardwired installation)
Total Weight: Approx. 620 kg (1,367 lbs)
Key Features:
- 11,000 lbs Capacity: Handles full-size trucks, SUVs, and heavy vehicles
- Clear-Floor Design: Symmetric arms with no crossbeam - full undercarriage access
- Single-Point Lock Release: Easy, safe operation with one control point
- CE Certified: Meets European safety and quality standards
- Dual Hydraulic Cylinders: Chain-drive system for smooth, balanced lifting
- 94.5\" Drive-Through: Wide clearance for working under vehicles
Safety Features:
- Overhead Shutoff Bar: Automatic lift stop prevents overextension
- Multiple Safety Locks: Secure mechanical locks at various heights
- Single-Point Lock Release: Controlled, safe lowering mechanism
- Rubber Door Guards: Protects vehicle doors during lifting
- Feet Protection Rails: Safety barriers around base of columns
- Automatic Arm Restraints: Keeps lift arms secure during operation
Perfect For:
- Professional Auto Repair Shops: Daily heavy-duty use
- Serious Home Mechanics: With appropriate garage specs
- Full-Size Vehicles: Trucks, SUVs up to 11,000 lbs
- Undercarriage Work: Exhaust, transmission, suspension repairs
- Brake & Tire Service: Full wheel access with vehicle lifted
CRITICAL Installation Requirements:
- Minimum Ceiling Height: 12 feet (144") REQUIRED - Overall lift height is 141.25"
- Floor Space: Minimum 142" W × 160" L for comfortable operation
- Concrete Floor: MINIMUM 5.9" (150mm) thick with 3,000 PSI rating
- 220V Electrical: HARDWIRED installation - Professional electrician REQUIRED
- Anchor Bolts: Must be properly installed into concrete (bolts included)
- Professional Installation: STRONGLY RECOMMENDED for safety and warranty
Electrical Requirements:
- Voltage: 220V AC (NOT standard 110V outlet)
- Installation: Hardwired connection required
- Circuit: Dedicated 20-30 amp circuit recommended
- Electrician: Licensed professional installation required
- Permit: Electrical permit may be required in your area

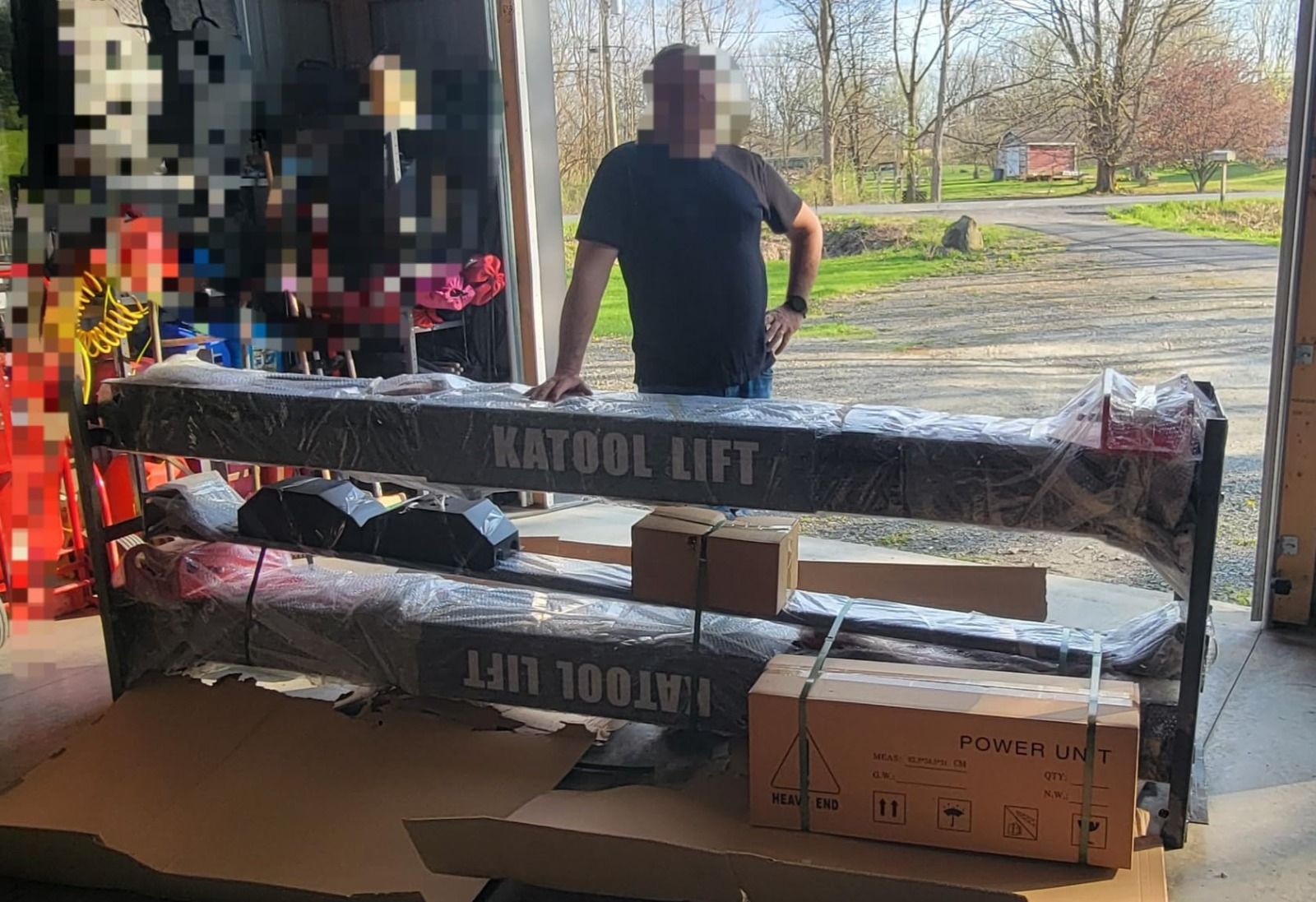

What's Included:
- Main lift columns (2) with hydraulic cylinders
- Overhead beam assembly (clear-floor design)
- Hydraulic power unit (220V)
- Lift arms (4) with adjustable adapters
- Rubber lift pads (4) for vehicle contact points
- Pad extensions (included - FREE accessory)
- Safety lock mechanism (multiple positions)
- Rubber door guards for vehicle protection
- Feet protection safety rails
- All mounting hardware and anchor bolts
- Installation manual with diagrams
- 12-month manufacturer warranty card
Installation Process:
- Step 1: Verify garage meets all requirements (ceiling, floor, electrical)
- Step 2: Mark anchor bolt positions per manual specifications
- Step 3: Drill holes and install anchor bolts into concrete
- Step 4: Assemble columns and overhead beam (2-3 people required)
- Step 5: Install hydraulic system and connect power unit
- Step 6: Have licensed electrician hardwire 220V power
- Step 7: Test all safety systems before first vehicle lift
- Professional Install Time: 4-6 hours for experienced team
12-Month Parts Warranty
- Manufacturer warranty covers defects in materials and workmanship
- Hydraulic components covered for 12 months
- Structural components covered for 12 months
- Electrical components covered for 12 months
- Proper installation and maintenance required for warranty validity
- Keep installation records and warranty documentation
Common Service Tasks:
- Oil changes and fluid service
- Exhaust system repairs and upgrades
- Transmission service and repairs
- Suspension work (shocks, struts, control arms)
- Brake service (rotors, calipers, lines)
- Differential and driveline repairs
- Undercarriage rust treatment and inspection
- Frame and subframe repairs
Important Limitations & Warnings:
- NOT for residential garages with low ceilings: Requires 12+ foot ceilings
- NOT a plug-and-play device: Professional 220V hardwiring required
- NOT for thin concrete: Minimum 5.9" thick, 3,000 PSI concrete mandatory
- NOT for DIY electrical: Licensed electrician required by code
- Do NOT exceed 11,000 lbs capacity: Overloading voids warranty and causes failure
- Do NOT lift without proper pad placement: Consult vehicle manual for lift points
- Regular Maintenance Required: Check hydraulic fluid, safety locks, and all components monthly
Maintenance Schedule:
- Daily: Visual inspection before each use
- Weekly: Check safety locks, arm restraints, lift pads
- Monthly: Inspect hydraulic fluid level and check for leaks
- Quarterly: Lubricate all moving parts per manual
- Annually: Professional inspection and certification recommended
- As Needed: Replace worn pads, check anchor bolt torque
Vehicle Compatibility Guide
- Standard Cars: Most sedans, coupes, wagons (easily within capacity)
- SUVs & Crossovers: Full-size SUVs up to 11,000 lbs
- Pickup Trucks: F-150, Silverado, Ram 1500 (check weight with load)
- Heavy Trucks: Some 3/4 ton trucks (verify loaded weight under 11,000 lbs)
- Sports Cars: Low ground clearance vehicles (4.25" minimum height accommodates most)
- NOT Suitable: 1-ton trucks, commercial vehicles, anything over 11,000 lbs
Shipping
Shipping times vary as we do ship worldwide from different fulfillment centers based on your location. Average shipping time is about 7 to 20 working days. Your tracking number will be updated 3-7 days after your order has been shipped.
Return policy
Customer Service
Hurry Up ! and get it now
$1,299.00
$2,599.00
-60%
Free Shipping
Free delivery over $800
Easy Returns
Returns extended to 60 days
Customer Support
Mon - Sat, 10am - 9pm.
Secure Checkout
Safe Transactions.
Reviews
Customers reviews.
Customers reviews.
Noah Bennett

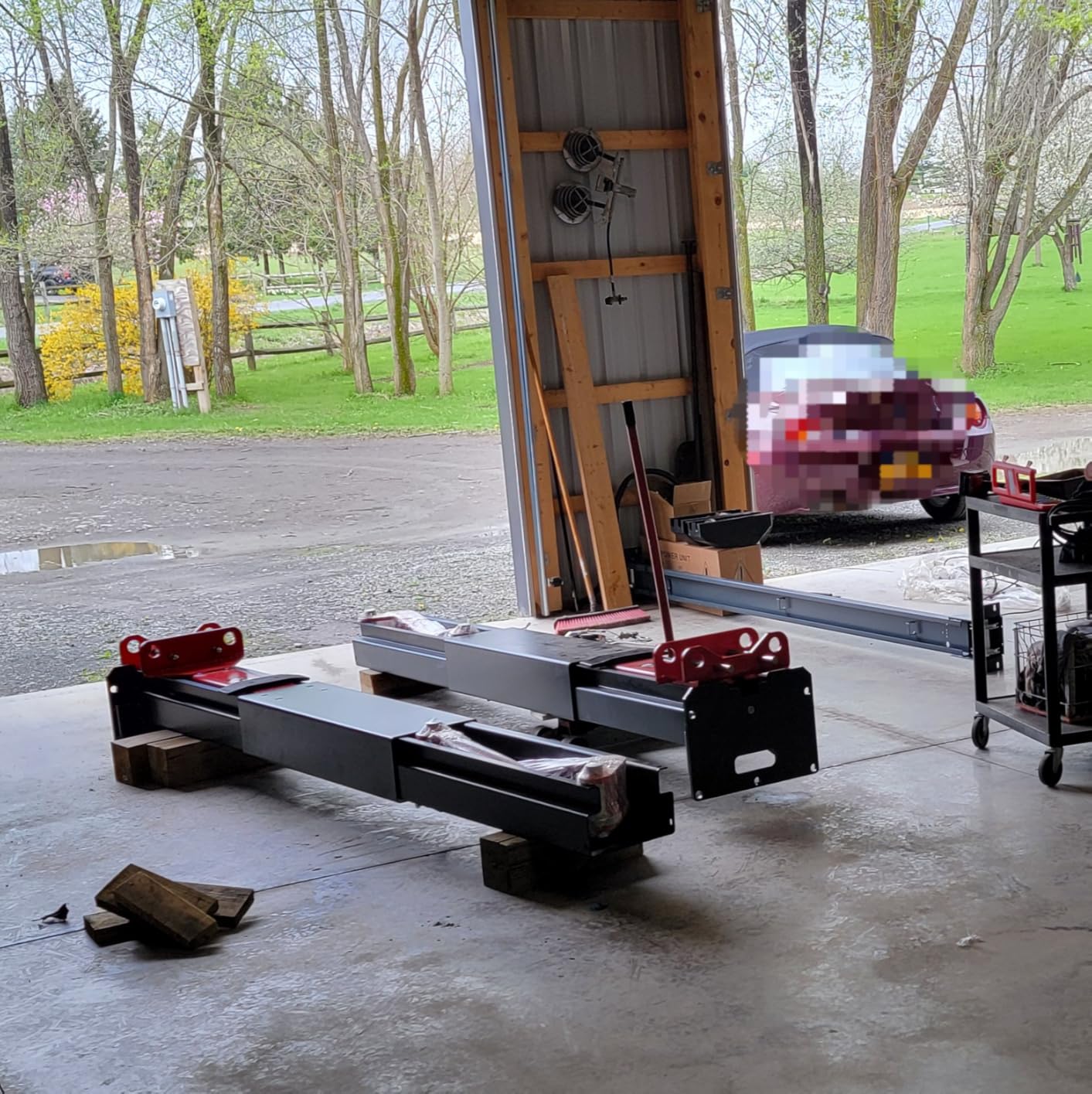

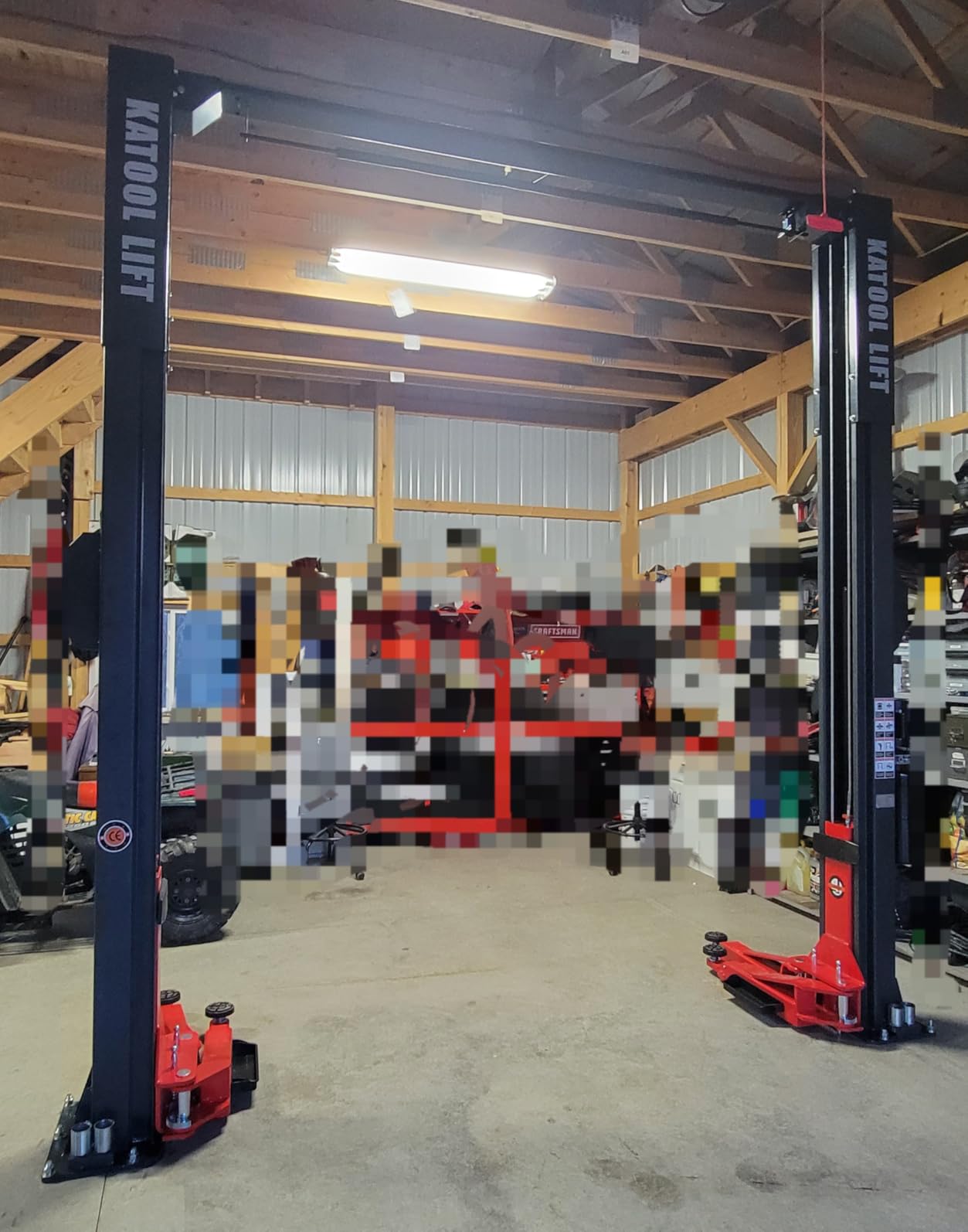

Installed this in my home garage last month. The quality is outstanding for the price. Assembly took about 4 hours with a friend helping. The instructions were clear, and all parts were included. Now lifting my F-150 and Camaro with no issues. The CE certification and safety features give me peace of mind. Very happy with this purchase!
I recommend this product
Oliver Hayes
Nice Unit - Watch the Assembly Video
Good quality lift for the money. Pro tip: forget the printed instructions and just watch the assembly video on YouTube - makes it way easier. The lift itself works great once installed. Only complaint is the manual could be better, but that's a minor issue. The actual product quality and performance are excellent. Would recommend to anyone looking for a reliable two-post lift.
Good quality lift for the money. Pro tip: forget the printed instructions and just watch the assembly video on YouTube - makes it way easier. The lift itself works great once installed. Only complaint is the manual could be better, but that's a minor issue. The actual product quality and performance are excellent. Would recommend to anyone looking for a reliable two-post lift.
I recommend this product
EDEN
Been using this for 3 months now in my shop. Handles everything from sedans to full-size pickups with ease. The 11,000 lbs capacity is perfect for my needs. The dual hydraulic cylinders provide smooth, stable lifting. Safety features like the overhead shutoff bar and door protection are well thought out. Highly recommend for professional or serious hobbyist use.
I recommend this product
Mason Reed
Easy Order, Easy Install - Great Lift for the Price!
This lift is perfect for DIY mechanics. Ordered online and received it within a week. Installation was straightforward - the YouTube assembly video was more helpful than the manual. The lift operates smoothly and quietly. I've used it on sedans, SUVs, and even my work van. The 11,000 lbs capacity handles everything I throw at it. Great investment for any home garage!
This lift is perfect for DIY mechanics. Ordered online and received it within a week. Installation was straightforward - the YouTube assembly video was more helpful than the manual. The lift operates smoothly and quietly. I've used it on sedans, SUVs, and even my work van. The 11,000 lbs capacity handles everything I throw at it. Great investment for any home garage!
I recommend this product
